Grizzly Outdoor

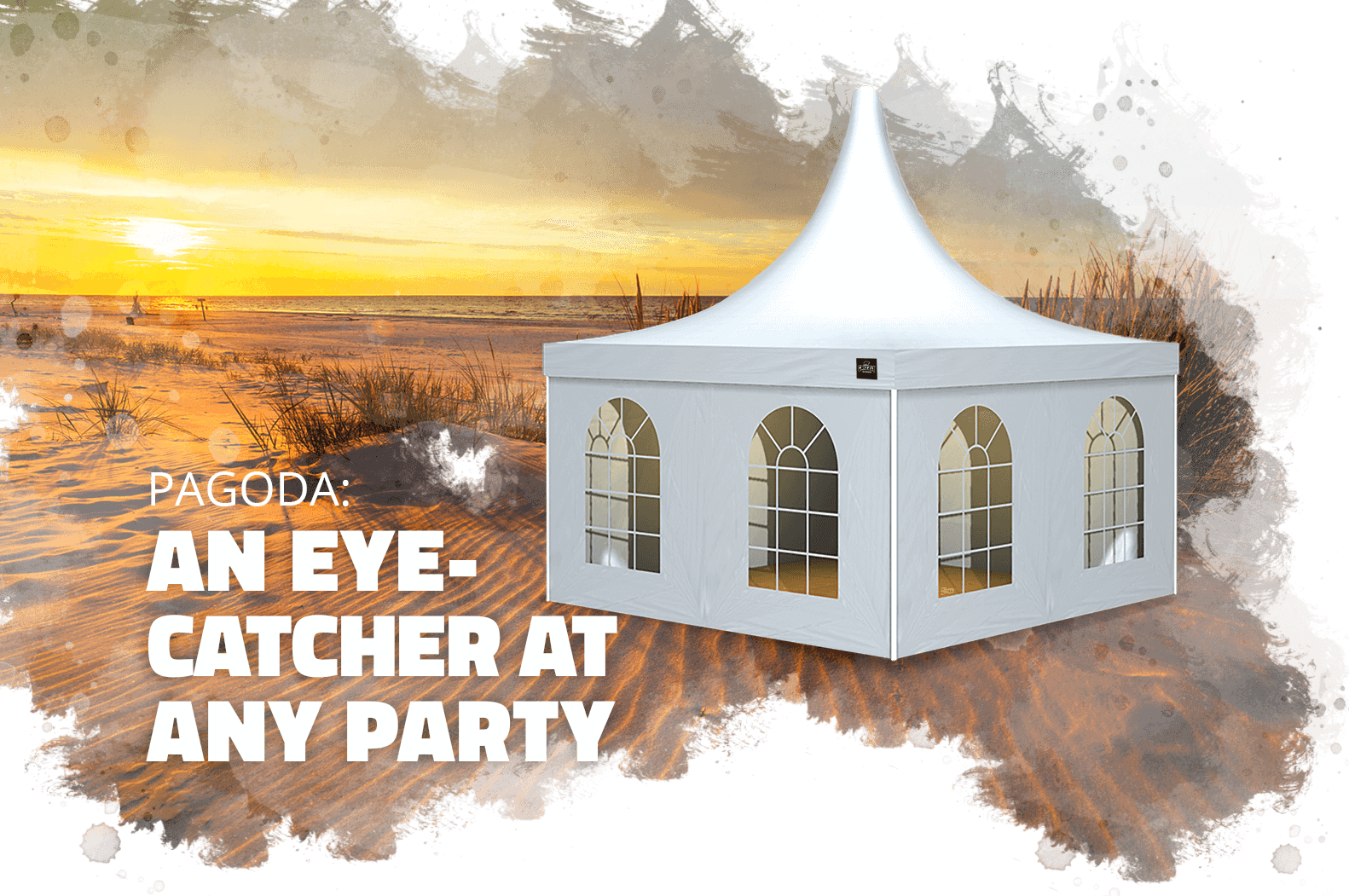

Pagoda
The extremely robust pagoda tents is an eye-catcher at any event. Pagoda tents have been popular on the business events market for many years. With this tent, they will have an absolute eye-catcher that offers good value for money.
Sidepanel with arch window
Sidepanel closed
Sidepanel transparent
Sidepanel limited
Choose from the above mentioned sidepanels with no extra cost. The sidepanel with entrance is always supplied as standard.
easy to
connect
Thanks to the aluminium frame keder profile, the Pagoda is very easy to connect with sidepanel and raingutter.
Performance Indicators
Wind Load till...
0
km/h
Warranty on parts supply for...
0
year
Strong stable roof connection...
0
times stronger then cable connection
With Comparable Pagode the Grizzly is...
0
% cheaper
Opaque no light...
0
%
Downloads
Online leveranciers
Ben je overtuigd?
Bezoek een van onze dealers
Factory warranty
- This product comes with a 2 year manufacturer’s warranty on the roof and frame (with the exception of professional use).
Technical specifications
Available sizes
- 300 x 300 x 380 cm (lxwxh) Entrance height 250 cm
- 400 x 400 x 450 cm (lxwxh) Entrance height 250 cm
- 500 x 500 x 540 cm (lxwxh) Entrance height 250 cm
- 600 x 600 x 570 cm (lxwxh) Entrance height 250 cm
Frame
- Frame aluminium profile 65x65x3 mm 6061 / T6 Alu
- Connecting elements made of galvanised steel
- Strong base plates made of galvanised steel
- Quick en easy assembly
- Including base frame
Roof tarpaulin
- Opaque 850 gr/m2
- Mold and rot resistant
- European UV and Flame retarding
- Roof attached with double keder system
Side walls
- Opaque 850 gr/m²
- Mold and rot resistant
- European UV and Flame retarding
- Easy Kede system attachment
Attachment
- Attachment with Keder
Other
- Fire retardant certified according to all European standards
- Fast attachment without tools
- Tents are easy to connect
- Construction calculation in accordance with NEN-EN 13782 with wind load 80 km/h
This tent is suitable for
- Festivals
- Rental
- Anniversary parties
- Temporary storage
- Fairs
- Sports events
- Garden parties
Pagoda
